In a fast-paced distribution center or manufacturing plant, every square foot of floor space impacts your bottom line. Yet, in many industrial facilities across Vancouver and the Lower Mainland, interior floor layouts are treated as an afterthought. Faded lines, missing forklift boundaries, and unmarked pedestrian routes create daily operational friction, slow down material handling, and significantly increase the risk of workplace accidents.
Strategic warehouse floor marking is one of the most cost-effective investments a facility manager can make. By converting open, unmarked concrete into a structured, visual navigation system, you protect your workforce, meet WorkSafeBC standards, and drastically improve daily workflow efficiency.
Here is a breakdown of how professional warehouse line painting in Vancouver transforms active industrial spaces and how to choose the right layout and materials for your site.
1. Separating Foot Traffic from Heavy Equipment (WorkSafeBC Compliance)
Forklifts, order pickers, and pallet jacks moving through tight aisles present serious safety risks to floor personnel and visitors. According to industrial safety standards, clear physical or visual separation between pedestrian walkways and mobile equipment travel lanes is essential for incident prevention.
- Dedicated Walkways: High-visibility yellow or green pedestrian lanes create clear safety corridors throughout the plant floor.
- Zebra Crosswalks & Junctions: High-contrast crossing zones alert both forklift operators and foot traffic at high-risk intersections and aisle ends.
- Hazard & Buffer Zones: Hatch-marked buffer zones keep personnel at a safe distance from active loading docks, overhead cranes, and automated machinery.
Clean, bright line striping ensures that safety rules are self-explanatory to new hires, contractors, and temporary workers from day one.
2. Implementing 5S Visual Management Principles
The 5S methodology (Sort, Set in Order, Shine, Standardize, Sustain) relies heavily on visual cues to maintain workplace organization. Without clear floor boundaries, tools, pallets, trash hoppers, and raw materials naturally drift into travel aisles and emergency access points.
By color-coding your floor layout, you standardize facility operations across all shifts:

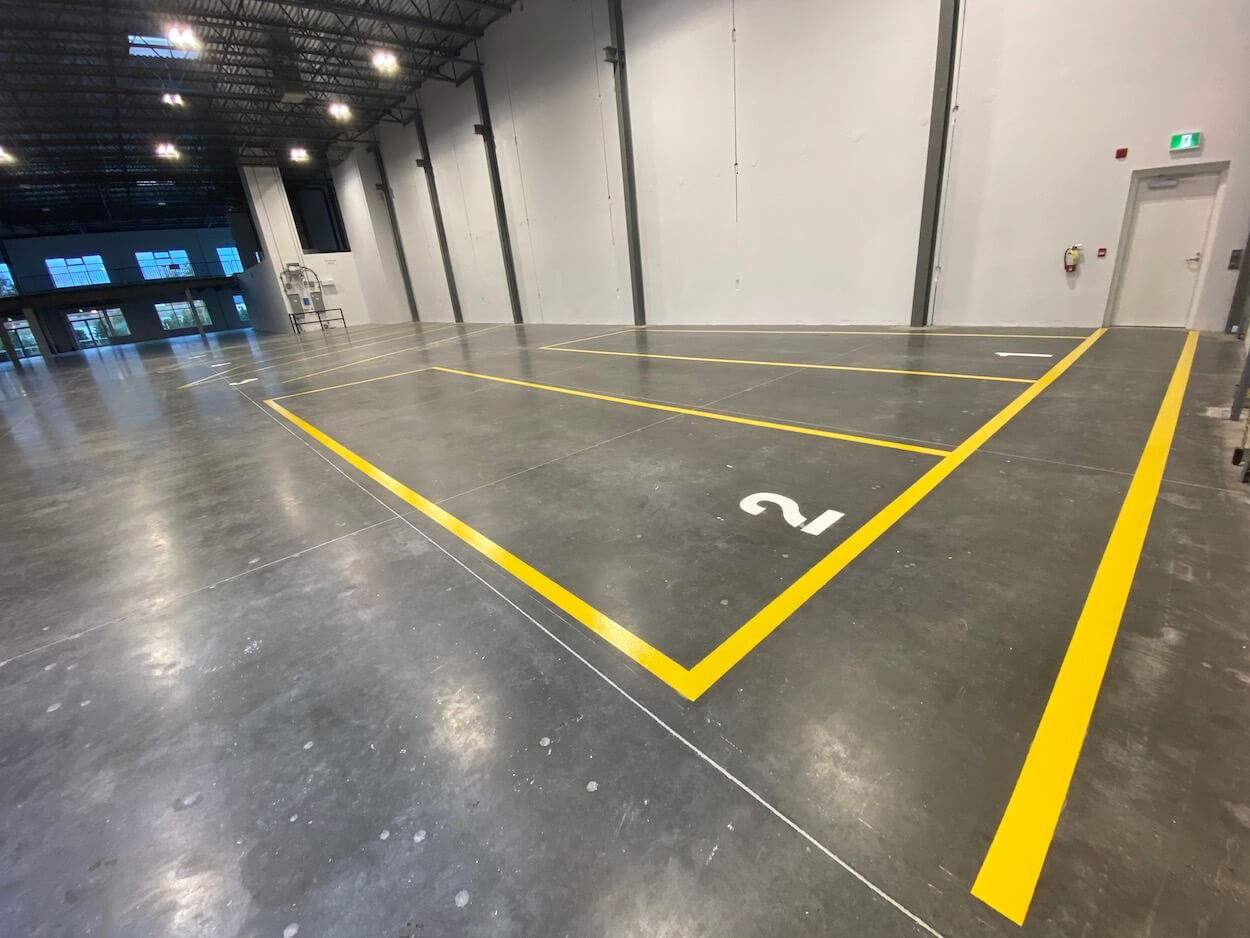

- Pallet Staging Boxes: Outlining precise floor storage bays prevents pallet overhang into active drive aisles.
- Equipment Parking: Designated boundaries for forklifts, battery charging stations, and floor scrubbers keep equipment organized when not in use.
- Safety Appliance Clearance: Red boundary striping around fire extinguishers, electrical panels, eyewash stations, and emergency exits ensures these areas remain 100% clear for inspection and emergency access.
3. Eliminating Traffic Bottlenecks & Boosting Throughput
When material handling operators have to guess where to stage inbound freight or navigate congested multi-way intersections, pick times slow down.
Professional warehouse line painting optimizes floor traffic by establishing clear rules of the road:
- One-Way & Two-Way Aisle Markings: Directional arrows on concrete floors prevent head-on forklift encounters in narrow racking aisles.
- Speed Bump & Stop Line Stenciling: Visible stop lines at blind corners and high-traffic aisle exits enforce safe equipment speeds.
- Inbound vs. Outbound Staging: Distinctly marked dock-door zones separate receiving freight from outbound shipments, preventing shipping errors and inventory mix-ups.
4. Selecting the Right Material for Concrete Floors
Smooth interior concrete presents distinct adhesion challenges compared to outdoor asphalt. Choosing the wrong paint formulation can result in lines flaking or chipping away under heavy forklift wheels within a few months.
When planning your warehouse line painting project, consider these three core options:
| Material Option | Best For | Key Performance Advantage |
| Industrial 2-Part Epoxy | High-traffic forklift lanes, heavy manufacturing, chemical exposure zones | Maximum impact and abrasion resistance; bonds deep into prepped concrete. |
| Specialized Concrete Traffic Paint | Storage bays, low-traffic perimeters, budget-friendly re-striping | Rapid drying times, economical, easy to update if floor plans change. |
| Heavy-Duty Industrial Floor Tape | Leased facilities, temporary staging areas, instant light-traffic access | No curing downtime, clean removal without mechanical concrete grinding. |
Pro Tip: Proper surface preparation is critical. Professional application requires mechanical shot blasting or diamond grinding to strip old sealers, oil, and laitance—giving new epoxy coatings a mechanical anchor to achieve maximum lifespan.
Optimize Your Facility Layout with Coast Line Painting
Whether you are moving into a new industrial facility in Tilbury, updating your distribution center in Campbell Heights, or refreshing faded lines in Mount Pleasant, Coast Line Painting delivers precision warehouse floor marking tailored to your schedule.
We offer off-peak, night, and weekend scheduling to complete floor preparation, line striping, and epoxy application without interrupting your daily operations.
Ready to upgrade your warehouse safety and workflow?
Call Coast Line Painting today at 604-314-9505 or submit our online form to request a free site assessment and estimate!
